Sep 15, 2016

Final sauna inspection by the city inspector

About a year ago plus a couple of months, I made the decision to build an outdoor wood fired sauna. I wanted to do it honestly and following the city rules so that I didn’t have any issues down the road. I started my build by talking to my city inspections department and figuring out exactly which permit is needed. In my city, any outdoor structure under 200 sq feet does not require a permit, however, it still needs to be approved by the city as far as where it’s placed, how it looks and such. I learned that my city inspections department had a pretty foggy idea of what a sauna is. One concern they had is there would be too much smoke outside. Apparently, as I found out, they thought a sauna was a wood boiler—the tiny house size oven you see placed outdoors behind a house in rural areas that heats the house in the winter and creates lots and lots of smoke. Eventually, the inspections department told me I needed to pull a stove permit and that the stove needed to be UL approved up to the UL 875. I paid my $90 and got the permit. As you recall from reading the blog, there are only 2 or 3 stove in the country that are even UL listed. From my further research, I found out that the listing my city inspections requested that I get actually applied to “Electric Sauna Stove” once I looked up the particular UL number. (http://ulstandards.ul.com/standard/?id=875) The correct UL listing for a wood burning stove is actually UL 1482 (http://ulstandards.ul.com/standard/?id=1482&edition=7&doctype=ulstd)

Well, I did find and install a great UL listed stove- Kuuma wood sauna stove by Lamppa Mfg (http://www.lamppakuuma.com). I followed the stove clearances and worked closely with my city inspector. When the chimney was first installed, I had my initial inspection and passed. After the stove was installed, I had my final inspection and FAILED. The inspector had some changes for me to make, such as getting half of one of my benches out of the clearance range of the stove, and covering the floor with cement. I complied.

Yesterday, I had my follow up “final” inspection. I am pleased to announce that the inspection PASSED and my sauna is now in full compliance and is ready for official use!

Sep 9, 2016

Cement over the sauna hot room floor

As you recall, I had made my sauna floor waterproof by putting down a shower pan liner—a thick waterproof membrane on the sauna floor along with a drain. I planned to leave it exposed and just put duckboard over it. However, the city inspector would not allow it and told me that I need a non-combustible floor. Although it was more work, the inspector was right.

First, every time we fired up the sauna—you could see the membrane on the floor become more malleable and less rigid.
Second, no matter how carefully we used the sauna—I noticed ash marks on the membrane that could have burned through.

All three concerns (inspector included) would be solved by cementing over the entire floor of the hot room. There could also be a potential benefit (haven’t tested yet,) that the cement floor would radiate the heat better than a PVC liner. Now, one concern is the added weight. For my hot room of about 6’x12’, I ended up using 6 bags of the Sand Topping Mix cement from Quickrete.

Sand Topping Mix cement used for sauna hot room floor.
Sand Topping Mix cement used for sauna hot room floor.

Each bag is 60lbs alone. Plus, you add water to activate it. So, from my quick calculations, 6 x 60lbs = 360lbs + water = (Roughly) 400lbs extra weight to the sauna. That’s like 2 guys. However, I think I should be OK because:

One: the cement is spread out over the entire floor—not concentrated in one area

Two: when building the sauna, I oversized things (smart, eh?) 6” x 6” instead of 4” x 4” posts, double 10” beams instead of 8” and so on.

Anyway, then came the hard part of actually doing the work. To begin, we got everything we could out of the hot room—the less obstacles the better.  We cleaned the existing floor as well as we could for the best outcome for the cement. I made sure that all the holes or openings were well sealed on the floor membrane. This was the last chance to truly make the sauna floor waterproof. I glued down the liner around the drain hole to make sure it was sealed. I also glued the actual drain to the liner as well. Things get dirty when working with cement, so I made sure and put down a tarp over the changing room floor so nothing got ruined. Finally, I gathered my tools so I was ready for work. I used 5 tools:

A mixing tub (about $6)
A shovel
A 16” x 4” Cement Trowel (about $14)
A 6” x 4” Cement Trowel (about $8)
A 2” x 5” Cement Trowel (about $4)

Tools used to form and shape the sauna hot room floor.
Tools used to form and shape the sauna hot room floor.

The work started by putting one cement bag, wrapper and all, in the tub. I then used the shovel to cut the bag open in the middle, then flip it over to empty it out in to the tub. I then poured water in to a bucket and added it to the cement in the tub in batches, mixed, and added more water as needed. The proportions of how much water to add are on the bag. Those are the best guidelines for you. However, I am too busy to read instructions ;) besides, I’ve used cement before. I just mixed it to a state slightly more watery than wet sand at the beach. If you get it too watery, add cement. If you overdid the cement, add more water. We used the shovel to mix the cement with water. There was no water left in the tub, the cement was pretty malleable and easy to spread yet it didn’t run down like water. Anyway—read the manual :)

Mixing cement with a shovel in a cement tub.
Mixing cement with a shovel in a cement tub.

Now, cement is not like glue—so you have some time to work with it, but you still need to be aware that as it dries, it’s harder to work with (you got about 30-40 minutes). So, I started putting it down in the hard to reach areas, such as behind the sauna stove.

First batch of cement around and behind the sauna stove.
First batch of cement around and behind the sauna stove.

With the Sand Topping Mix cement, there’s no aggregate (pebbles) just sand and mortar. Technically, it can be spread as thin as ¼” and still do its job. I was aiming for about a ½” thickness throughout the floor. Now remember, we have already previously given the floor a slope towards the drain from all angles of the sauna hot room. Our goal with putting down the cement is to preserve that slope. This can easily be checked with a long level after you have finished putting down a section of the cement on the floor. The cement mix is pretty thick and should hold the level tool just fine.

When forming the cement on the floor, use the longer trowel as much as you can to give the cement a nice uniform smooth look. If the big trowel doesn’t fit, switch to the smaller one. Only use the smallest trowel for detailed work and not to smooth over an area. Remember, you can always add or remove cement from an area and smooth it over again. Do that until you’ve achieved the look you want. Finally, once you confirmed that the slope still exists, and the cement is smooth and looking good, you can move on to the next hard to reach area.

Next hard to reach area of the sauna hot room floor.
Next hard to reach area of the sauna hot room floor.

Farthest section of the sauna hot room floor is done with cement.
Farthest section of the sauna hot room floor is done with cement.

Final section of the sauna hot room floor being cemented.
Final section of the sauna hot room floor being cemented.

Last piece of the sauna hot room floor being cemented.
Last piece of the sauna hot room floor being cemented.

Once you have all the hard to reach areas completed, go ahead and finish off the last part. Remember to feather the cement down towards the drain right around the drain—use the small trowel. Once done, clean up and let the cement cure. Spray the tools, the tub, and the area where you mixed the cement with water to keep everything clean for next time. Next day, you can walk on your new cement hot room floor to admire your work, but give it about a week to let it fully cure before really using it.

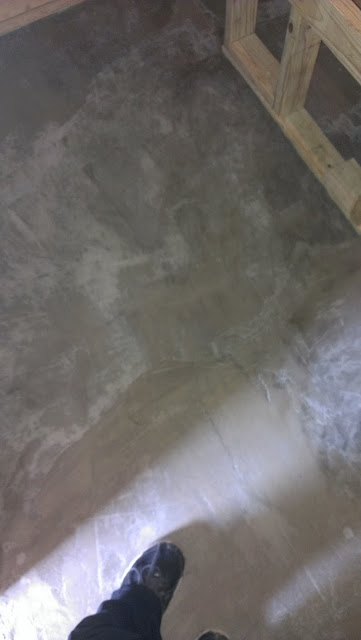

Cemented sauna hot room floor 24 hours later.
Cemented sauna hot room floor 24 hours later.




First sauna firing after the cement floor was completed.
First sauna firing after the cement floor was completed.

Well, I am more than pleased with how the floor turned out and what it does for the hot room. I think others agree with me as well. Not only does it look good, it's functional. We can now stack wood near the stove while we take a sauna and not worry about it ripping the waterproof liner. The cement was cool to walk on barefoot even though we had the sauna up to about 190F. The light color of the cement actually seems to make the room brighter. Overall, I am very happy with the results. We will soon see if the inspector agrees with me ;)
